Telemetry system you can collect flow meter data directly from RS485 Enabled flow meter and make this data into actionable insights through user-friendly cloud-based dashboarding so you can make better decisions based on facts.
With our cloud-based dashboarding, we can help you to bring more insights of liquid (water, chemical etc.) usage in the plants and machines in a single platform eliminating the complex multi-software, expensive software thus bringing down the IT capital costs.
Features:
❏ 1 x RS-485 port for Modbus
❏ OTA (Over The Air) Firmware support.
❏ LED Indicator provides Power, Network, Cloud, and Communication status.
❏ Keep Alive command to maintain socket connection
❏ Robust Industrial Design & Easy to install and integrate
❏ Visualize the collected data on a dashboard
❏ Analyze incoming data to derive actionable insights
❏ Store data for reporting and historical analysis
❏ Automatic reports generation with defined time intervals and to configure mails

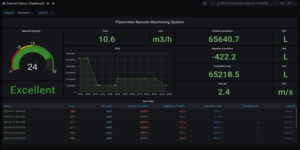

Sample Dashboard:
Dashboard parameters:
- Flow
- Positive cumulative total
- P+N cumulative total
- Dynamic units change as per the flow meter
- Velocity
- Negative cumulative total
- Network strength & RSSI signal quality
- historical flow data
SMS Features:
- 1 Admin + 3 Users access
- Auto Status Message two times in a day
- SMS Accepted only from the authorized number
- Date and Timestamp in the message
- Automatic time aqasion from the network
- Instantaneous status can be inquired
Technical Specifications
| Input voltage | 24V DC, 2A |
| Indication | 4nos LED – Power, Network, Cloud and, Communication |
| Network Type | GSM, Low Power 2G ( Quad-band 850/900/1800/1900MHz ) |
| Cloud Communication | MQTT Protocol |
| Communication Channel | RS-485 |
| Data update frequency | 15 Min to 1 Day – step interval Settable from dashboard |
| Historic data storage | Last 3 Months |
| SMS Communication | Available |
| Daily SMS Alert | Available to maximum 3 Users, 2 times in a day |
| Daily SMS Alert Time | Settable from SMS command |
| Instantaneous flow meter status SMS | Available |
| Mounting | DIN Rail Mount |
| Mounting Type | Snap-In |
| Enclosure Material | ABS (IP20) |
| Operating Temperature | 0 to 70 Degree C |
| Operating Humidity | 95% RH |
| Dimension (W x H x D) | Width: 90 mm, Height: 105mm, Depth: 52mm |
| Weight | Approx. 100g |
