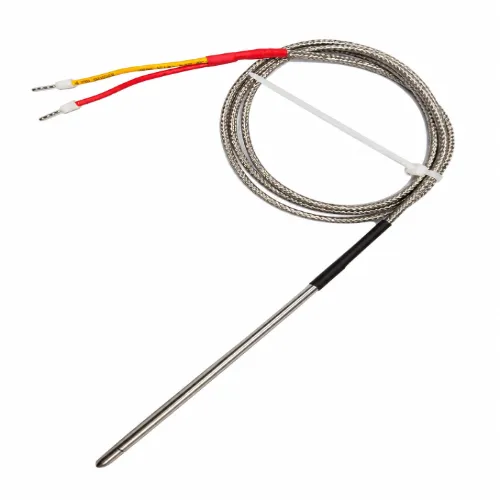

Looking for a K Type Thermocouple with a compact 3 mm probe, SS316 sheath and adjustable process connection? This configuration combines a 150 mm SS316 sheath with a 2-meter SS braided cable and 1/8″ NPT Male SS304 adjustable fitting, making it suitable for industrial temperature sensing installations where compact dimensions and flexible probe positioning are important. Buyinstrument.shop provides this product with transparent fixed pricing, zero middleman markup and direct factory dispatch.
The thermocouple features a 3 mm outer diameter and a 150 mm sheath length, providing a compact probe configuration for temperature measurement where installation space or insertion depth is limited. The sheath material is SS316, providing a stainless-steel construction suited to industrial instrumentation applications where a durable probe sheath is required.
The process connection is a 1/8″ NPT Male SS304 adjustable fitting. The adjustable fitting allows the installed position of the probe to be adjusted according to the required insertion depth and mounting arrangement. The use of a 1/8″ NPT Male connection should be matched with the corresponding female threaded connection on the equipment or process point before ordering.
The thermocouple is supplied with a 2-meter cable, providing additional connection length between the sensing point and the associated temperature monitoring or control equipment. The cable uses SS braided insulation, giving the cable a mechanically reinforced construction for industrial installation environments.
Key Features
• Compact 3 mm probe diameter: Suitable for installations where a slim sensing probe is required.
• SS316 sheath construction: Provides a durable stainless-steel probe configuration for industrial use.
• 150 mm sheath length: Provides a defined probe insertion length for compact temperature-sensing points.
• 2-meter SS braided cable: Offers practical connection reach with mechanically reinforced cable insulation.
• 1/8″ NPT Male SS304 adjustable fitting: Supports threaded installation with adjustable probe positioning.
• K Type thermocouple configuration: Suitable for industrial temperature measurement applications requiring this thermocouple type.
Applications
• Industrial temperature measurement and process monitoring
• OEM machinery and equipment temperature sensing
• Process equipment and instrumentation systems
• Factory maintenance and replacement applications
• Industrial automation and temperature control systems
• Machine-building and engineering applications
FAQs
1. What are the key specifications of this K Type Thermocouple?This K Type Thermocouple features a 3mm outer diameter probe, 150mm SS316 sheath, and a 2-meter cable with SS braided insulation. It is supplied with a 1/8″ NPT Male SS304 adjustable fitting, allowing the probe position to be adjusted during installation. Verify these dimensions and connection specifications against your equipment and installation point before ordering.
2. What material is the thermocouple sheath?
The thermocouple probe sheath is manufactured from SS316, providing a durable stainless-steel construction for industrial temperature measurement applications. The adjustable process fitting is separately specified as SS304.
3. What cable is supplied with the thermocouple?
The thermocouple is supplied with a 2-meter cable featuring SS braided insulation. This provides practical cable length for connecting the sensor to compatible temperature controllers, indicators, transmitters, or other instrumentation while offering additional mechanical protection to the cable.
4. Is the 1/8″ NPT fitting adjustable?
Yes. The sensor is equipped with a 1/8″ NPT Male SS304 adjustable fitting, which allows the probe insertion position to be adjusted during installation. This can be useful when precise probe positioning or insertion depth is required for the application.
